Product Description

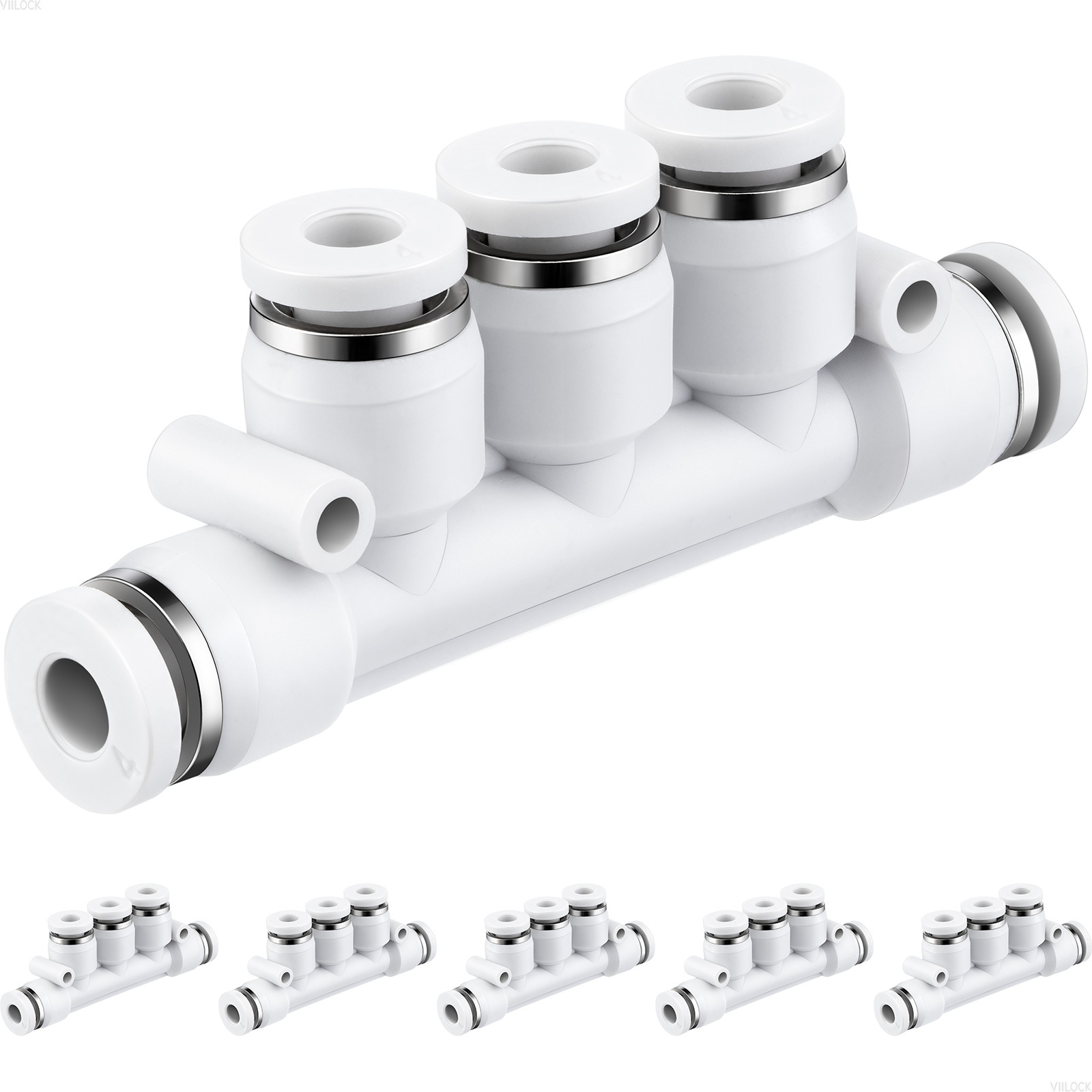

The PK-4 is a compact, standardized 5-way pneumatic manifold connector engineered for 4mm outer diameter (OD) pneumatic tubing. It seamlessly splits a single air supply line into five independent branches, compatible with PU, PA, PE, or PVC tubes. Constructed from durable, corrosion-resistant white material with an integrated, space-saving design, this manifold ensures reliable air distribution, tight sealing, and effortless installation. Ideal for automated production lines, pneumatic fixtures, and robotic systems, the PK-4 delivers consistent performance while simplifying complex pneumatic routing.
Key Features
- 5-Way Efficient Distribution: One-touch five-outlet configuration for streamlined air distribution, reducing pipeline clutter and optimizing system layout.
- 4mm Universal Compatibility: Fits 4mm OD PU/PA/PE/PVC pneumatic tubes with secure, easy push-to-connect connections.
- Wide Operating Range: Supports 0-145PSI pressure and 32-140°F temperature, ensuring stable performance in diverse industrial conditions.
- Compact & Lightweight: Integrated white design with a small footprint to save installation space, suitable for dense piping layouts.

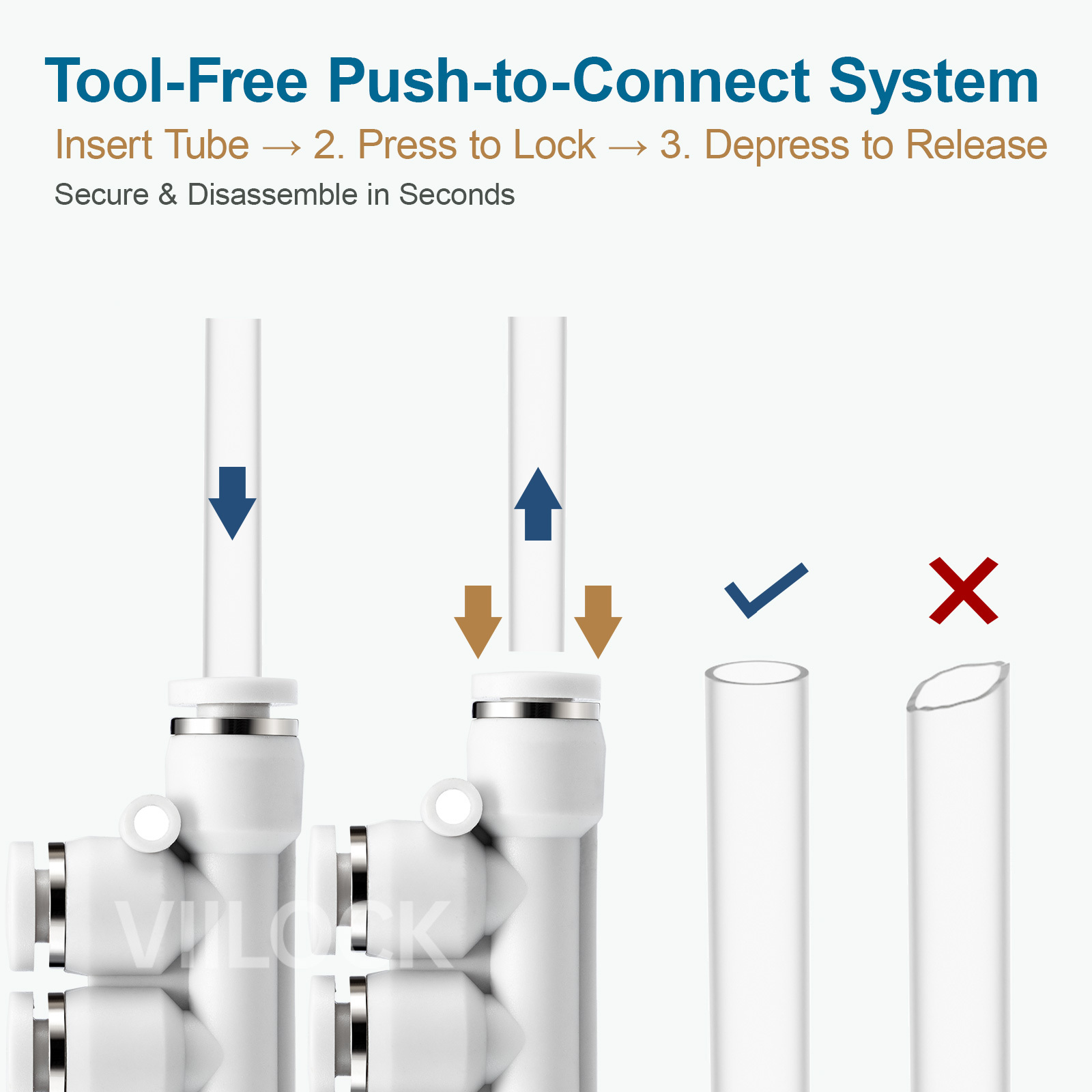

- Tool-Free Installation: Push-to-connect mechanism enables quick assembly and disassembly without additional tools, improving efficiency.
Technical Parameters
- Model: PK-4
- Type: 5 Way Manifold Union Connector
- Tube Size: 4mm OD (Fits PU/PA/PE/PVC Tubes)
- Pressure Range: 0-145PSI
- Temperature Range: 32-140°F

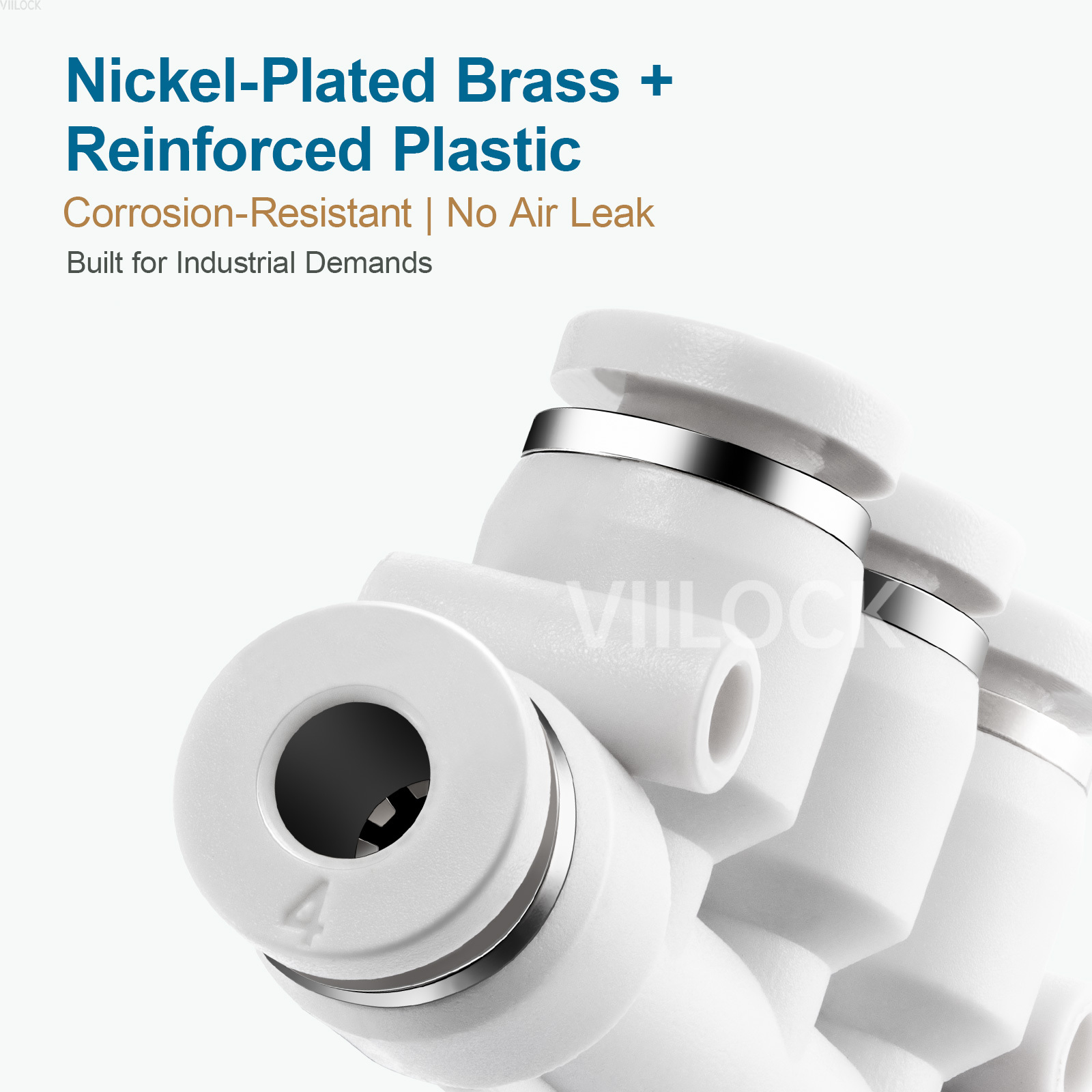

- Material: Engineering Plastic (White Corrosion Resistant)

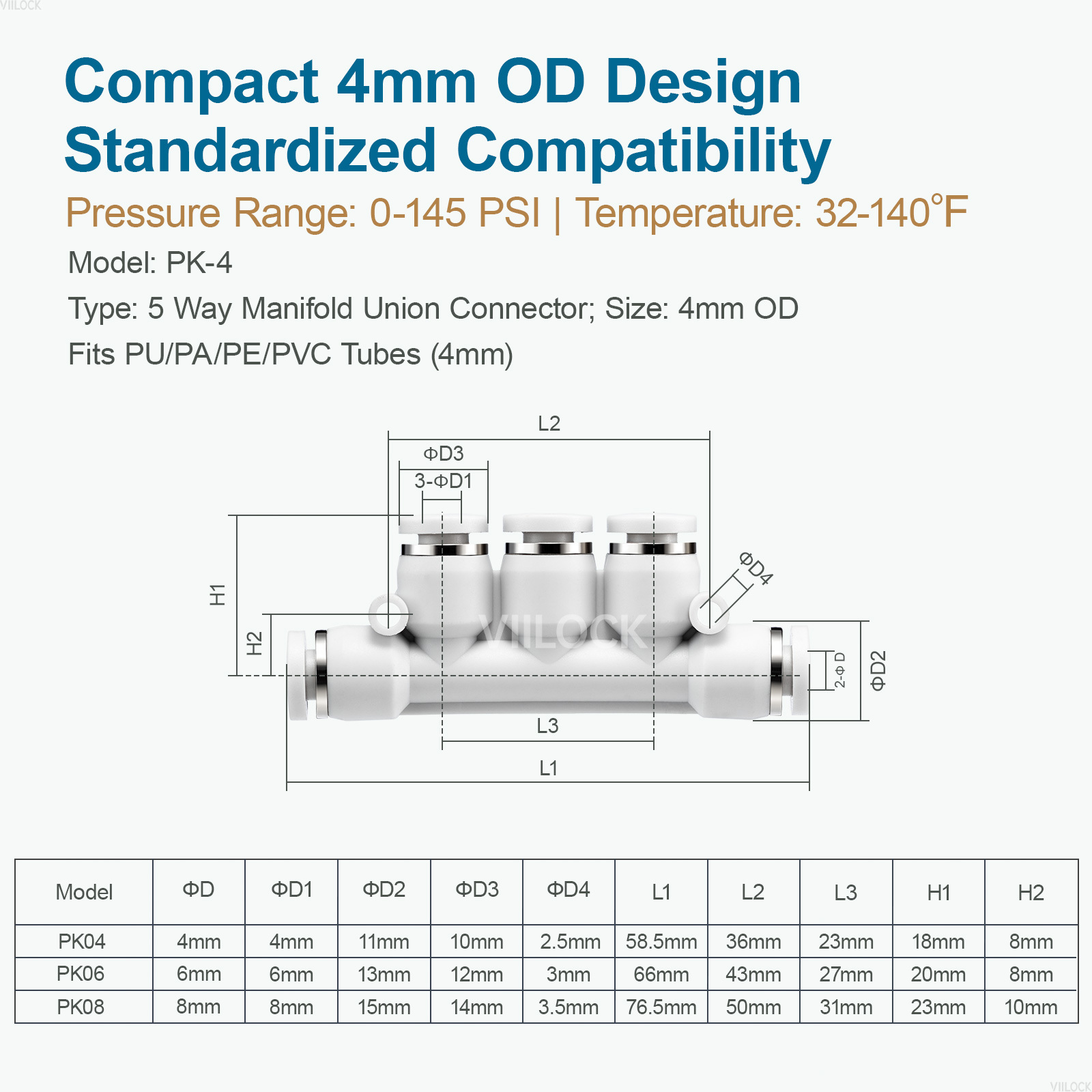

- Dimensions: ΦD=4mm, ΦD1=4mm, ΦD2=11mm, ΦD3=10mm, ΦD4=2.5mm, L1=58.5mm, L2=36mm, L3=23mm, H1=18mm, H2=8mm
Applications

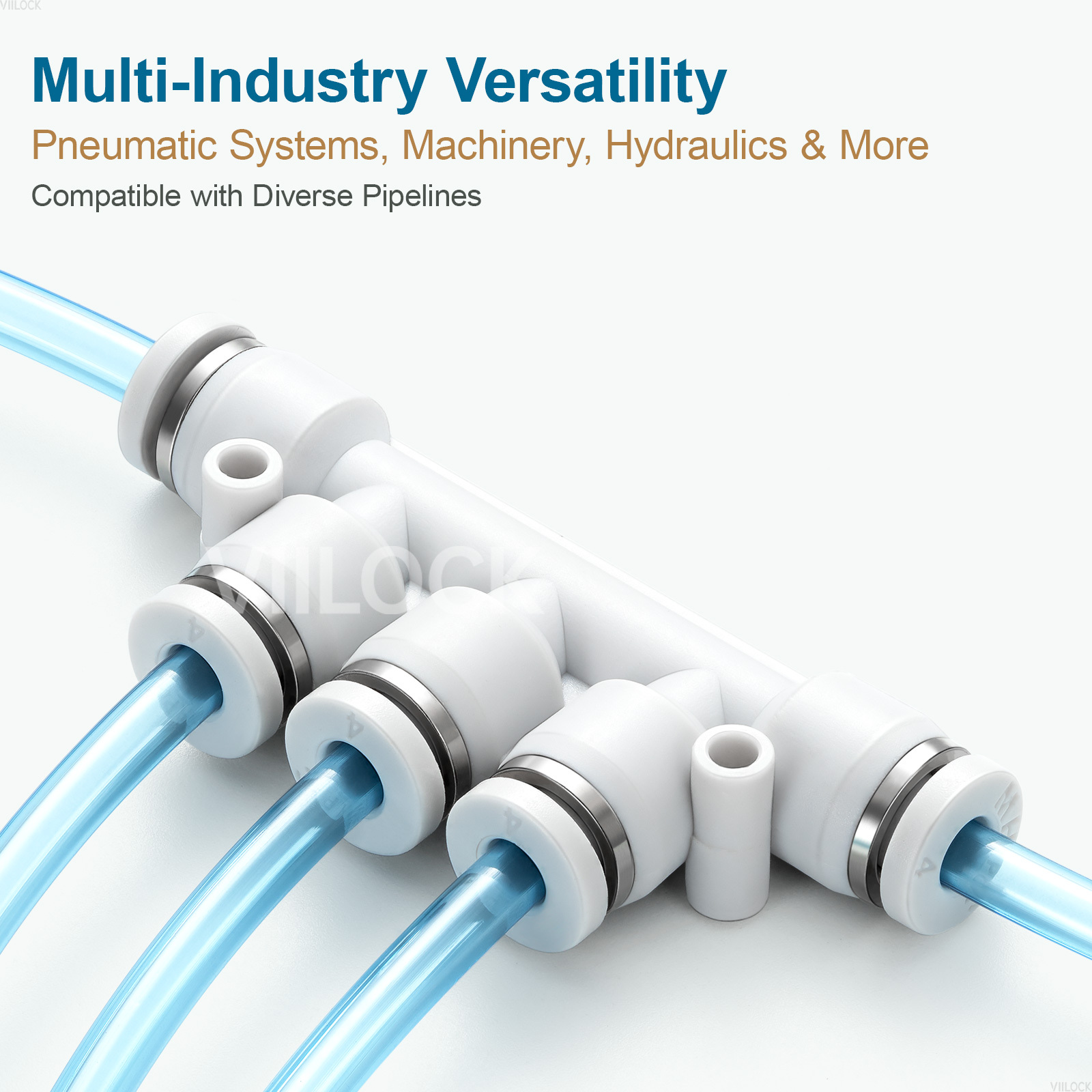

Widely used in automated assembly lines, robotic pneumatic systems, machine tool fixtures, pneumatic testing devices, and multi-branch air supply scenarios. Perfect for automated equipment with compact spaces and complex piping.
We welcome global automation factories, machine builders and pneumatic distributors for long-term cooperation. Bulk orders, custom specifications and OEM/ODM services are available. Contact us for wholesale quotes, free technical support and sample requests.
