Product Description

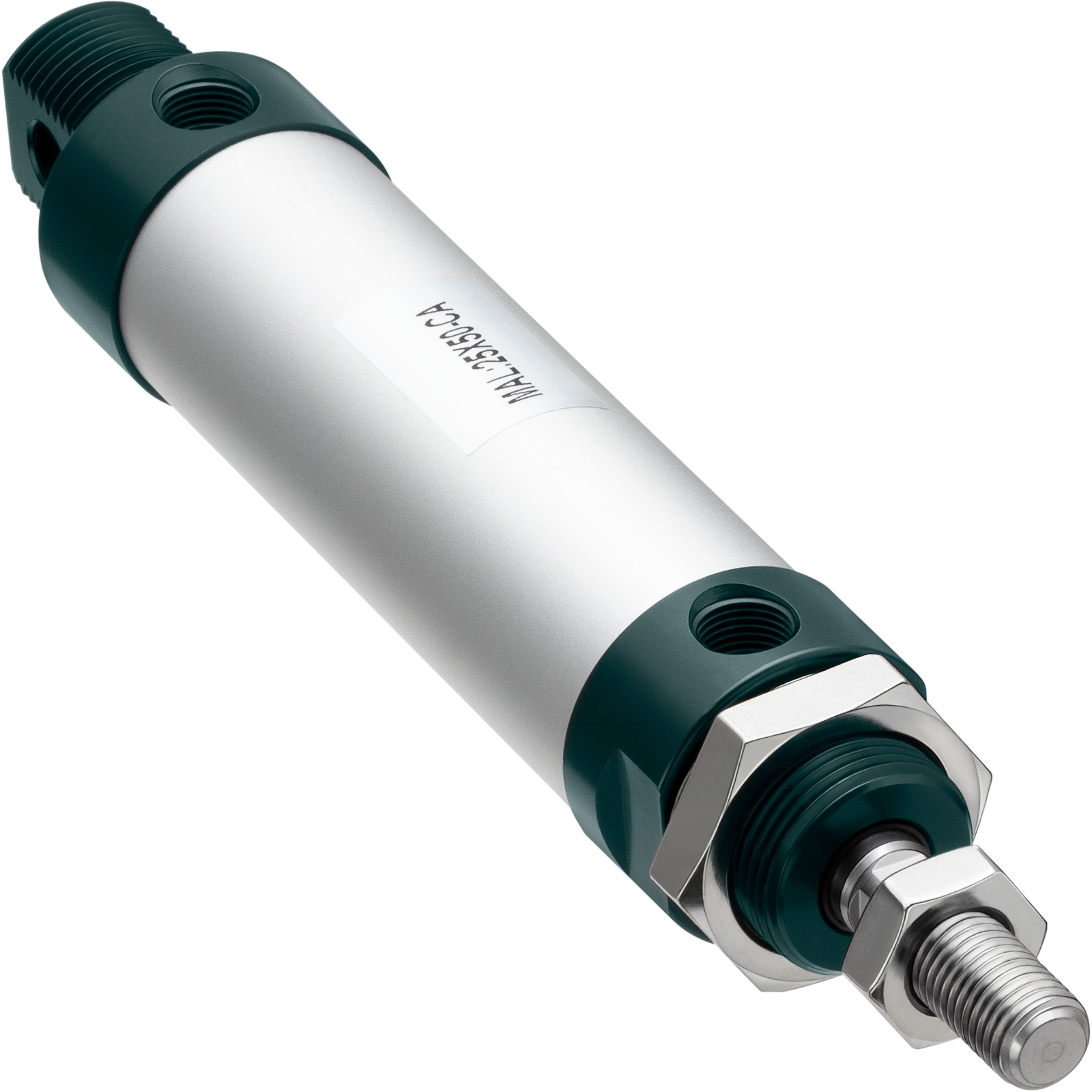

MAL25×50 is a standard aluminum alloy mini air cylinder featuring a double-acting, single-rod structure with a 25mm bore and 50mm stroke. Equipped with a PT 1/8 port, it adopts a high-strength aluminum alloy barrel for lightweight design while ensuring excellent structural strength and corrosion resistance. It delivers smooth operation, fast response, and stable airtightness, suitable for various linear reciprocating motion scenarios in automated production lines and mechanical devices, with easy installation and strong universality.
Key Features
- Double-Acting Drive: Single-rod double-action structure with bidirectional air pressure drive, ensuring smooth and powerful extension/retraction

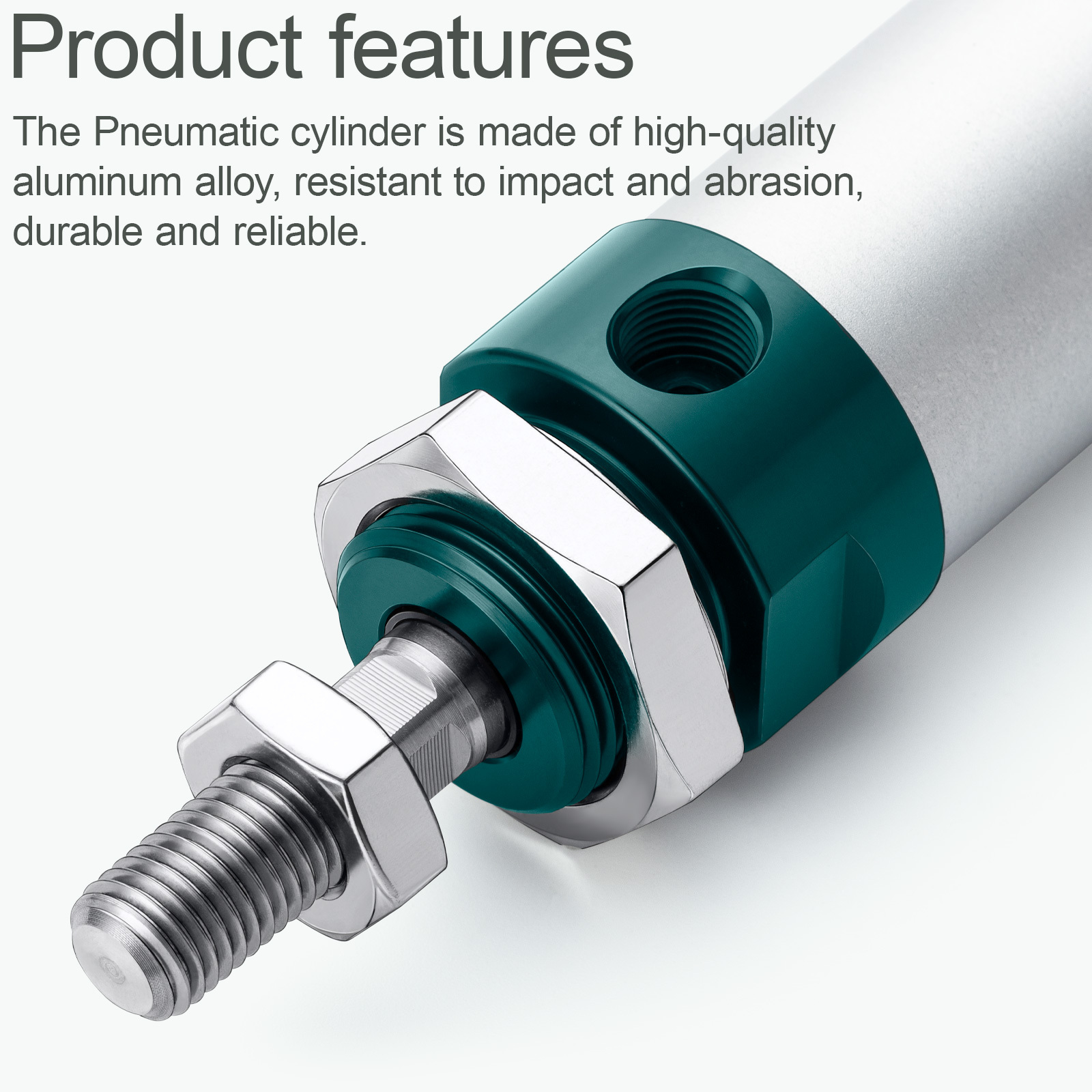

- Lightweight Aluminum Alloy: Lightweight aluminum alloy barrel with high strength and wear resistance, suitable for high-frequency operation and complex working conditions
- Standard Port Configuration: PT 1/8 universal port, with M22×1.25 & M10×1.25 threads on both ends of the rod for versatile installation solutions
- High-Precision Sealing: Excellent sealing performance with low leakage rate, stable operation and long service life
- Compact Installation: Standardized dimensions and mounting holes for easy integration and low space occupation
Technical Parameters
- Model: MAL25×50
- Product Type: Double-Acting Mini Cylinder (Single Rod)
- Bore: 25mm

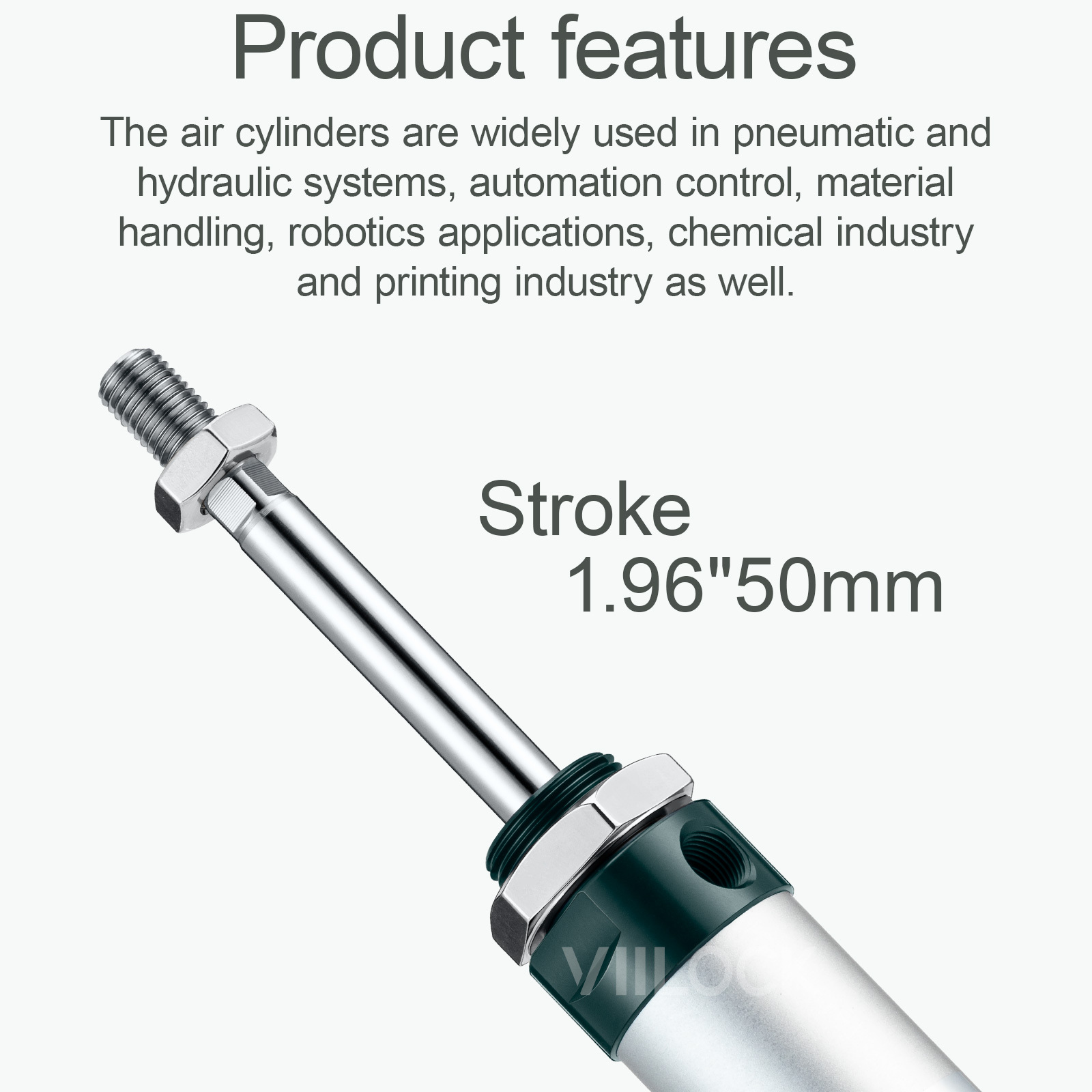

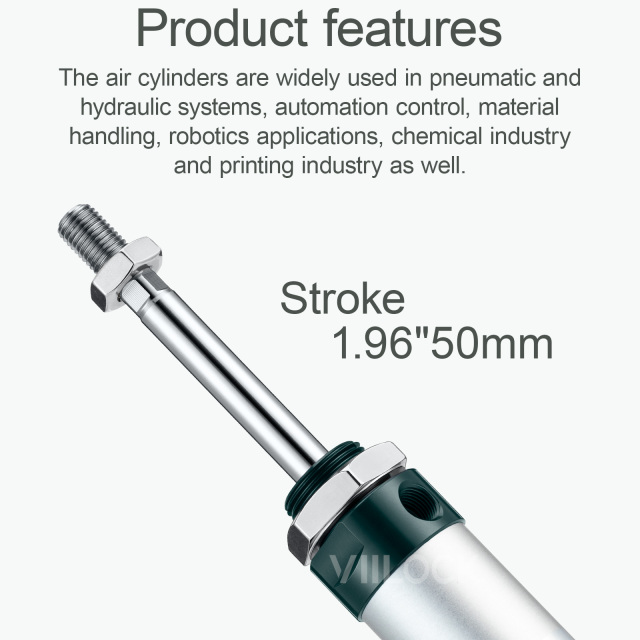

- Stroke: 50mm
- Material: Aluminum Alloy Barrel
- Action Type: Double-Acting
- Port Thread: PT 1/8
- Piston Rod Thread: M22×1.25 (both ends), M10×1.25

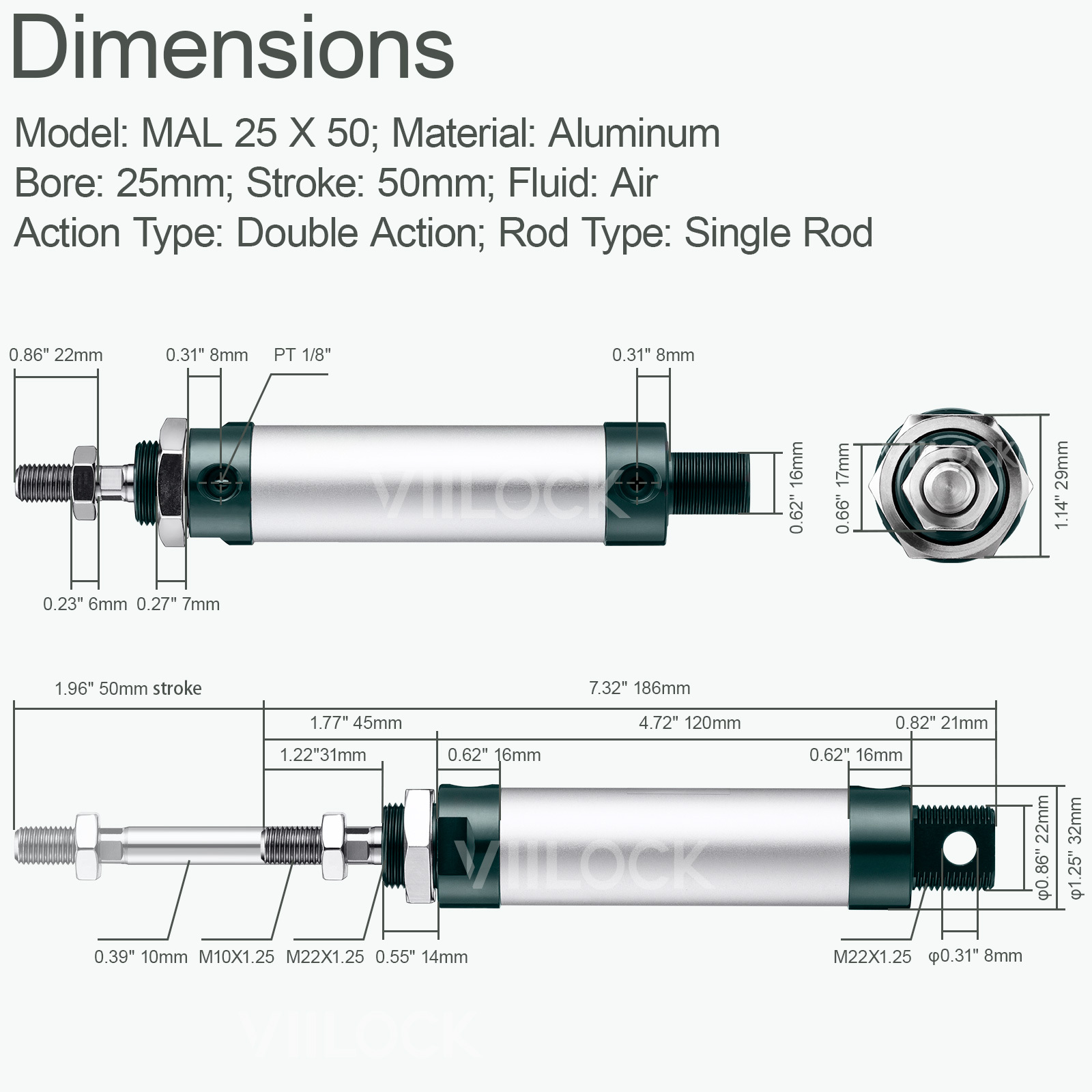

- Overall Length: 186mm (total length), Mounting Center Distance: 120mm
- Medium: Air
Applications
Widely used in workpiece grabbing and positioning scenarios of automation equipment such as automatic assembly lines, CNC machine auxiliary devices, electronic component clamping, and industrial robot end-effectors.
