Product Description
The JM06-A is a high-precision mushroom head push button pneumatic mechanical valve with a 3-way 2 structure. It triggers air flow reversing by manually pressing the mushroom head, realizing the switching of P-A on and P-R on. Equipped with an aluminum alloy valve body, compact structure and reliable sealing, it works under 0-0.8MPa pressure and 0-60℃ temperature, suitable for manual operation scenarios of various automated production lines and pneumatic control systems, with comfortable operation feel, fast response and easy installation.
Key Features
- Mushroom Head Push Design: Large green mushroom head button, labor-saving pressing and high recognition, suitable for manual operation scenarios
- 3/2-way Universal Port: 1/4"PT standard industrial port, universal for Air Inlet (P), Air Outlet (A) and Exhaust (R), compatible with mainstream pneumatic pipelines
- Wide Temperature & Pressure Range: Working pressure 0-0.8MPa, working temperature 0-60℃, adapting to various industrial conditions
- Aluminum Alloy Valve Body: Lightweight and high-strength, impact-resistant, wear-resistant and long service life
- Standardized Installation: Standardized mounting holes (2-φ5.5mm, hole pitch 20mm), easy integration, compatible with universal mounting brackets
Technical Parameters
- Model: JM06-A
- Product Type: Mushroom Head Push Button Pneumatic Mechanical Valve (3/2-way)
- Port Size: 1/4"PT (P Inlet/A Outlet/R Exhaust)
- Working Medium: Air
- Working Pressure Range: 0-0.8MPa
- Working Temperature Range: 0-60℃

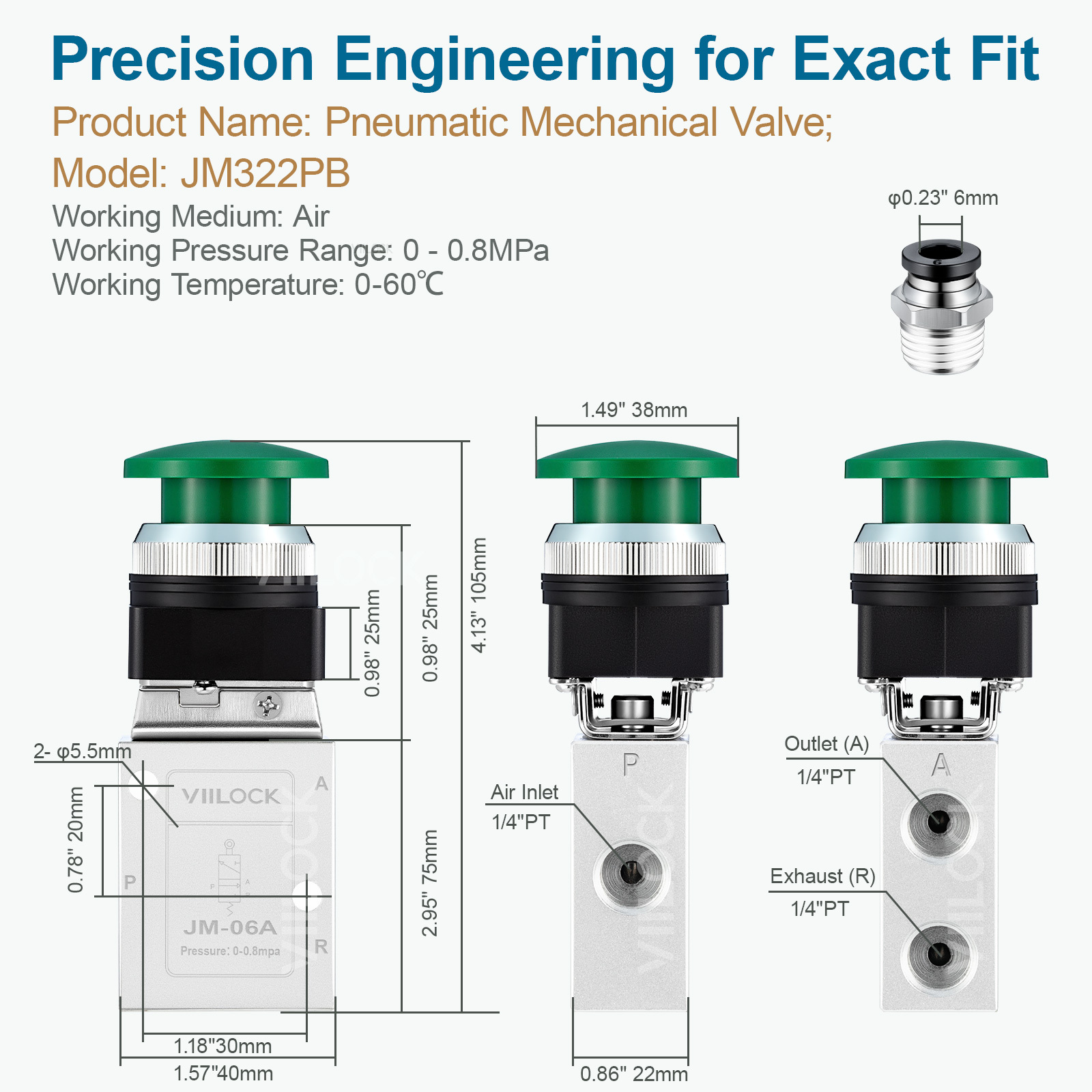

- Body Dimensions: 40mm×30mm×22mm, Total Height 105mm
- Mounting Hole Specification: 2-φ5.5mm, Hole Pitch 20mm
- Compatible Push-in Fitting: φ6mm
Applications
Widely used in manual control of automation equipment, emergency stop of pneumatic systems, machine tool operation panels, production line start-stop control and other pneumatic scenarios requiring manual trigger reversing.
