Product Description

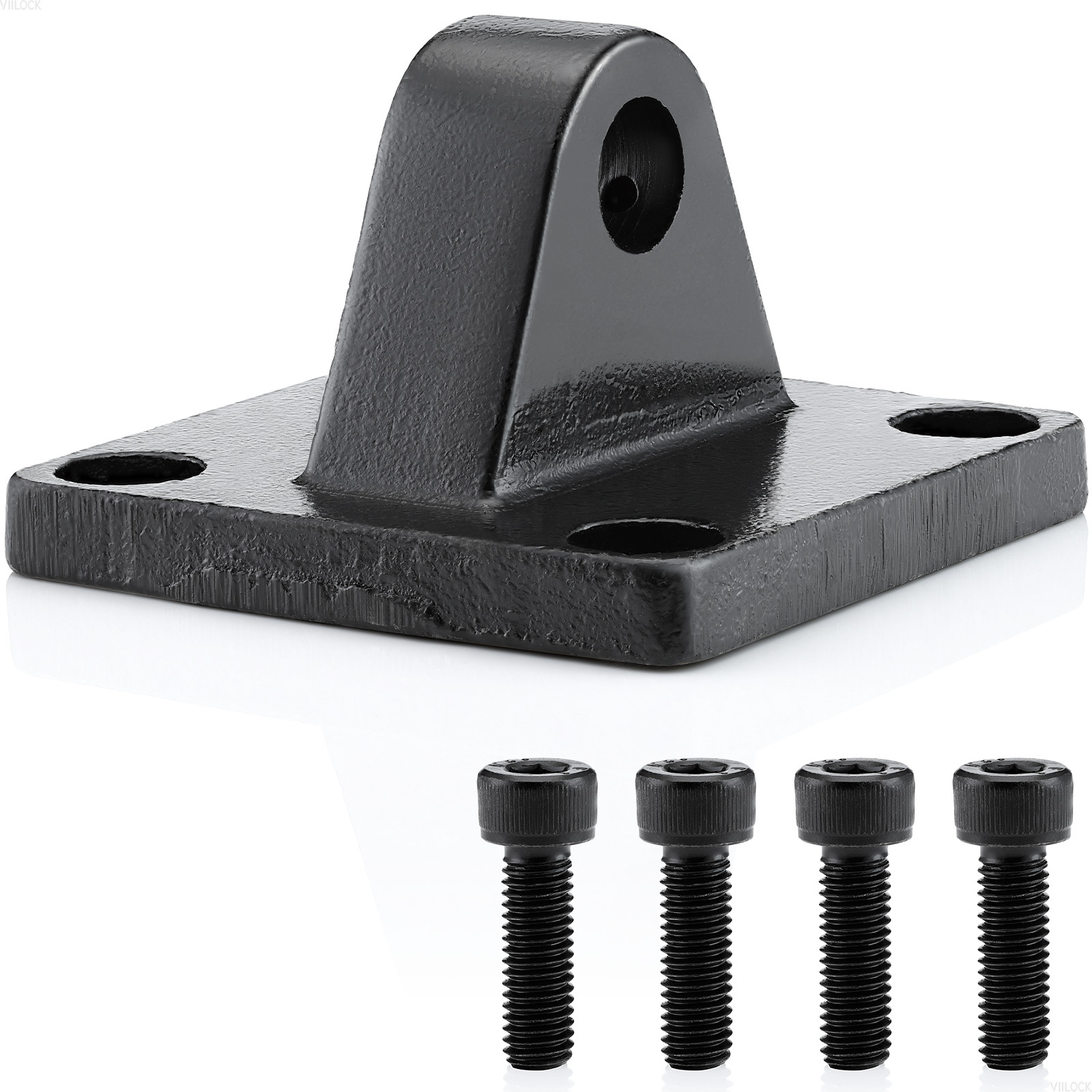

The CA-63 is a heavy-duty cast iron mounting base specifically engineered for 63mm bore standard pneumatic cylinders and gas spring rods. Constructed from high-quality cast iron with a black coated finish, this bracket delivers exceptional strength, impact resistance, and wear resistance. Its standardized design ensures a perfect fit with standard cylinder models, providing a secure and stable mounting solution. The package includes 1 CA-63 bracket and 4 M8×1.25 socket head cap screws, making it ready for immediate installation. It is widely used in automated production lines, machine tool fixtures, and gas spring support systems.
Key Features

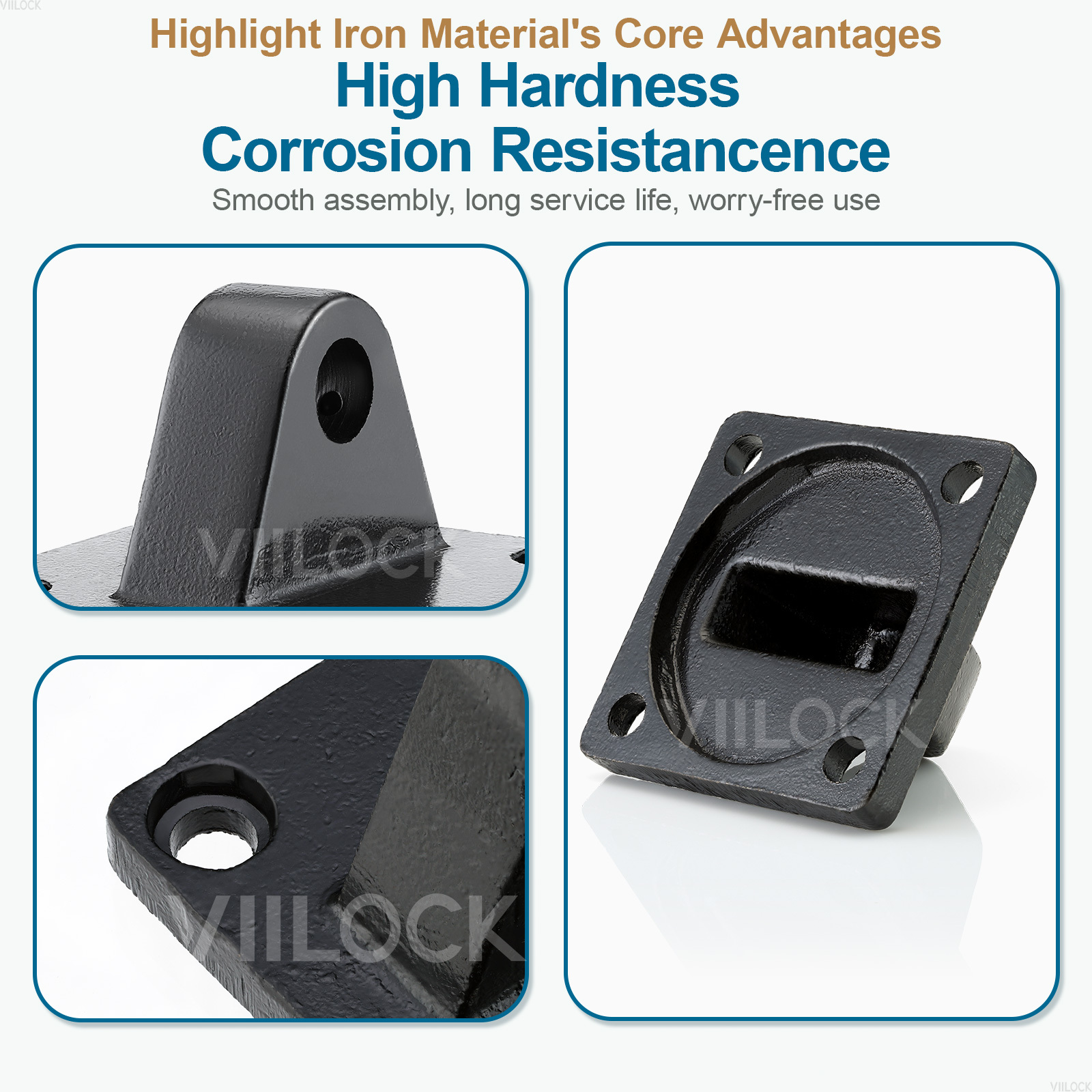

- High Hardness Cast Iron Construction: Heavy-duty cast iron material for superior load-bearing capacity and durability under high pressure and frequent operation.
- Corrosion Resistant Coating: Black coated finish provides excellent rust and wear resistance, suitable for harsh industrial environments.
- Standard Fit for 63mm Bore: Precision engineered to fit standard 63mm bore cylinders, ensuring universal compatibility and easy integration.
- Complete Mounting Kit: Includes 4 high-strength M8×1.25 bolts for a tight and secure installation, preventing loosening.
- Reliable Performance: Smooth assembly, long service life, and worry-free operation in automation control scenarios.
Technical Parameters
- Model: CA-63
- Application: Standard Pneumatic Cylinders / Gas Spring Rods (63mm Bore)
- Material: Cast Iron (High Hardness)
- Surface Treatment: Black Coating (Anti-Rust & Wear Resistant)
- Bolt Size: M8 × 1.25 (4 Pcs)
- Mounting Hole: φ13.5mm (4 Holes)

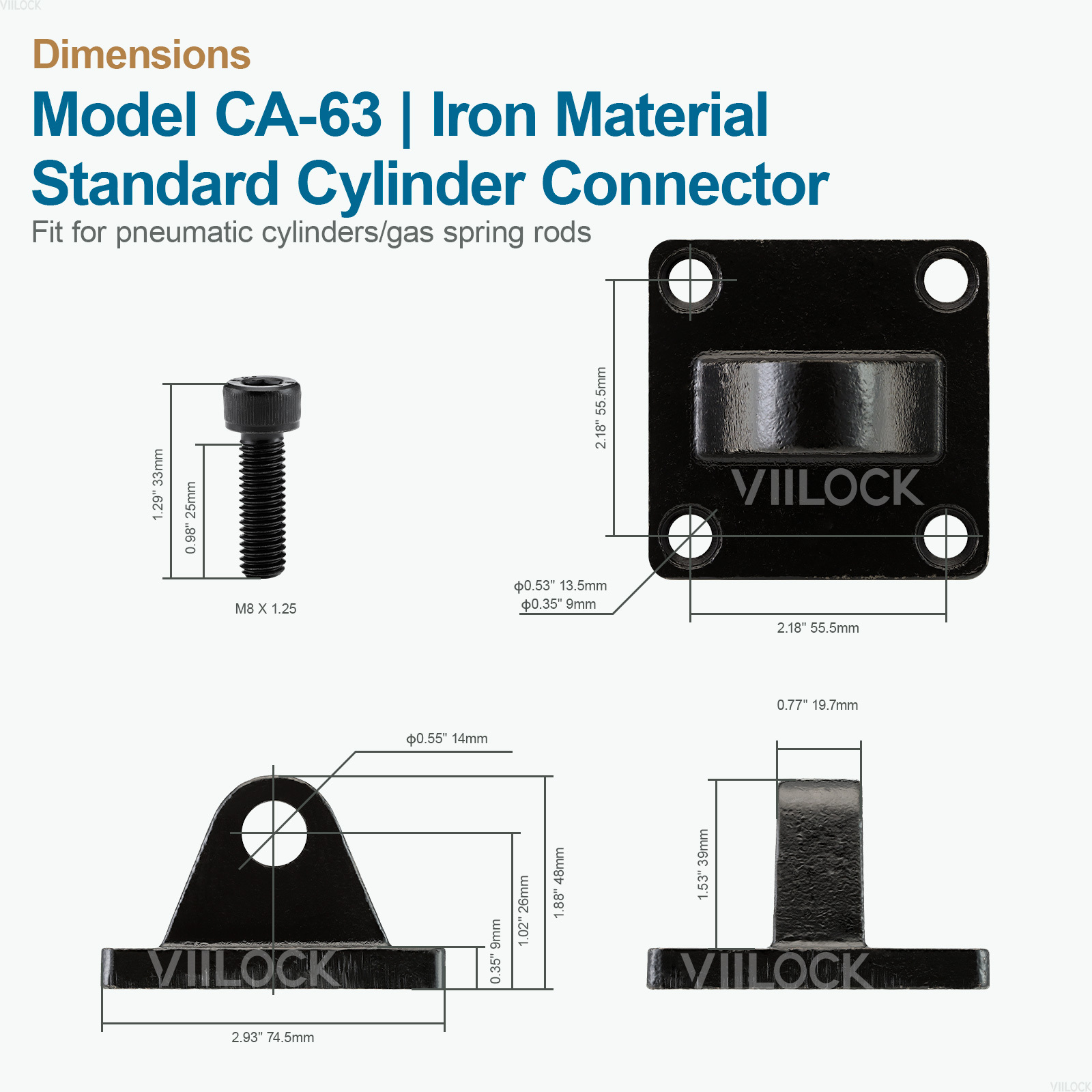

- Key Dimensions:
- Base Plate: 55.5mm × 55.5mm (2.18")
- Height: 48mm (1.88")
- Width: 74.5mm (2.93")
- Connecting Hole: φ14mm (0.55")

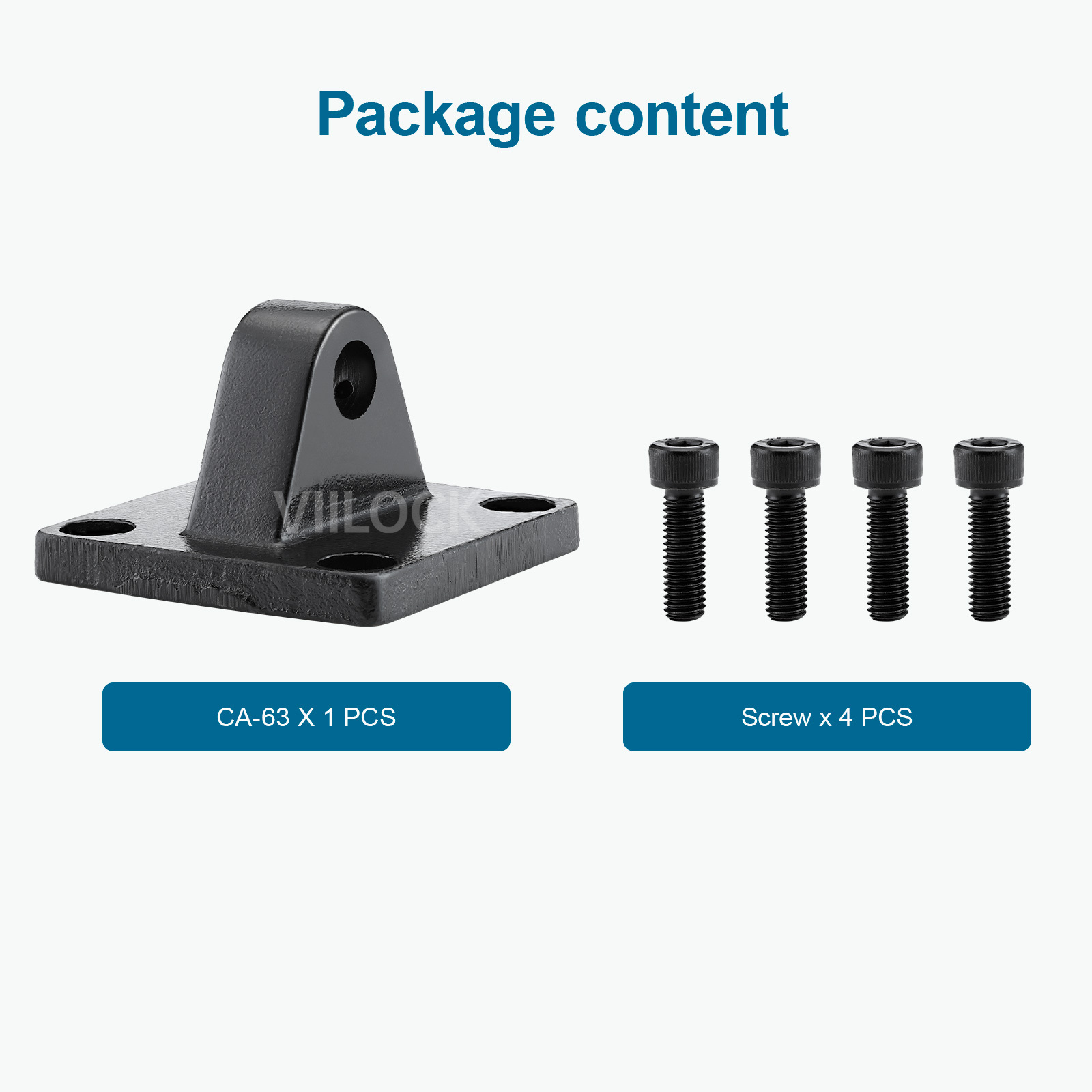

- Package Content: 1 x CA-63 Bracket, 4 x M8×1.25 Screws

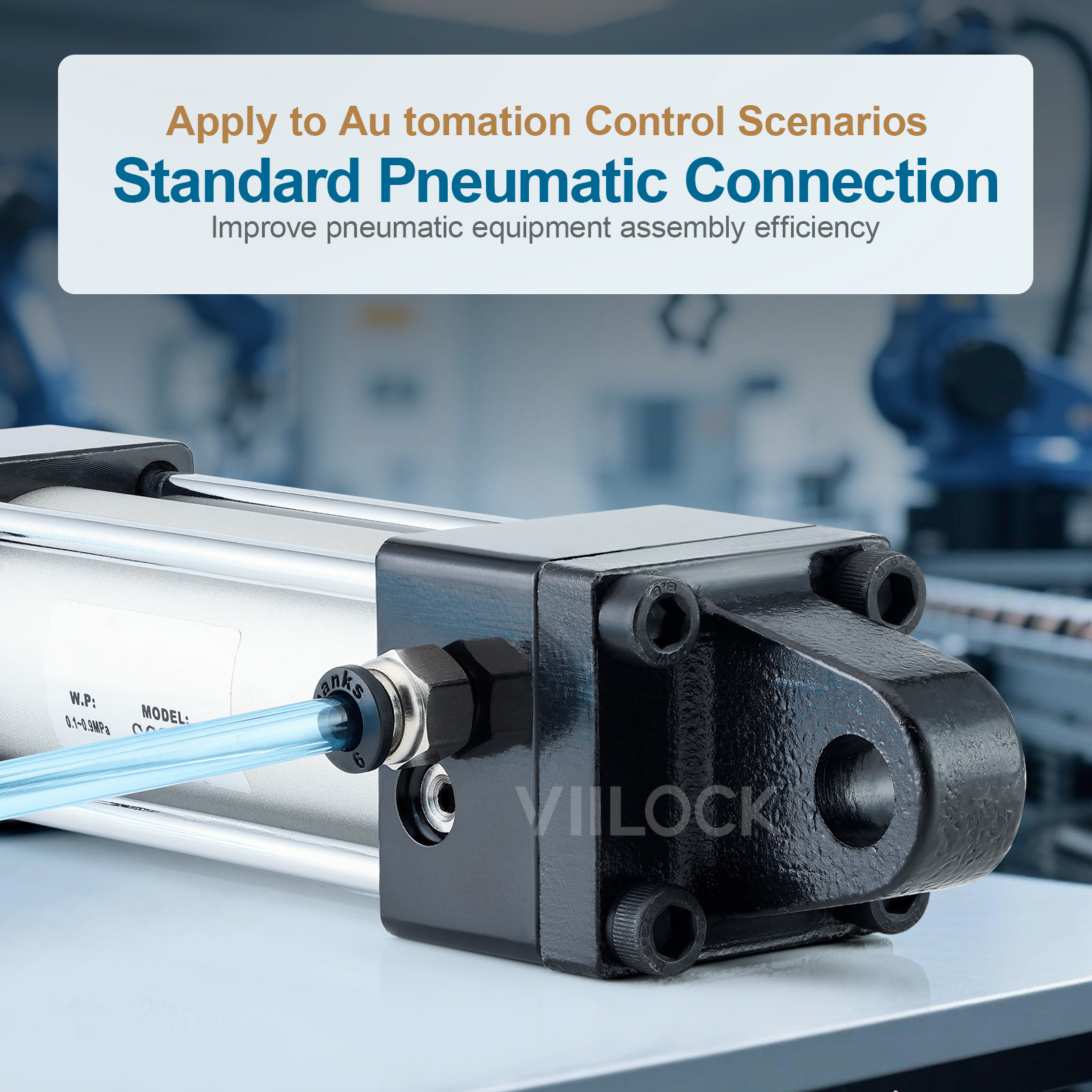

Applications
Widely used in automated assembly lines, machine tool clamping systems, industrial robot end-effectors, gas spring support systems, and other automation control scenarios requiring stable cylinder fixation.
