Product Description

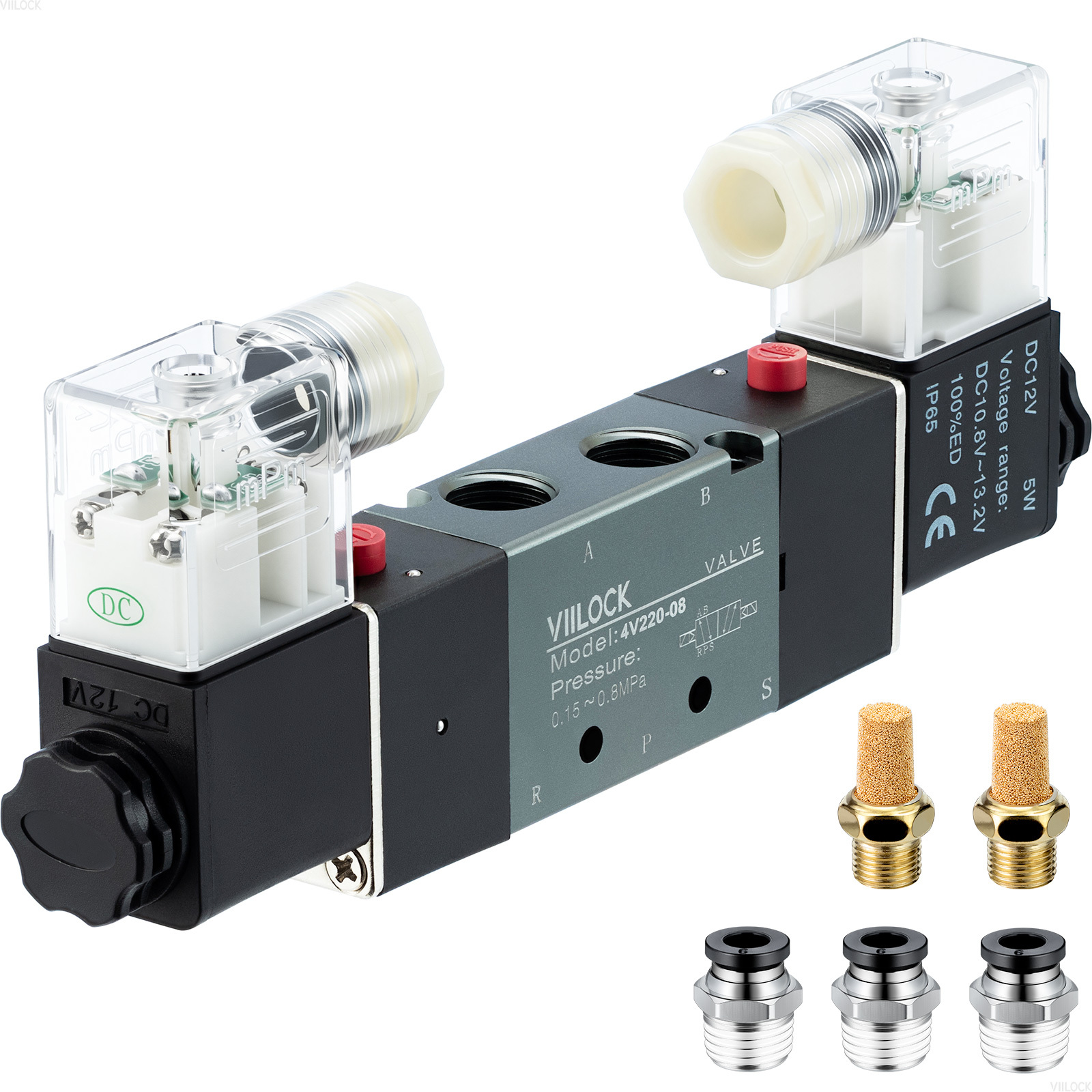

The 4V220-08 is a heavy-duty 5/2-way double solenoid pneumatic valve engineered for reliable directional control of double-acting cylinders. Constructed from high-strength aluminum alloy with a transparent visible coil housing and DC12V/AC110V actuation, it delivers precise, instant response for pneumatic systems. Featuring standard 1/4"NPT ports for supply/actuation and 1/8"NPT exhaust ports, this valve ensures seamless integration with mainstream pneumatic components. With exceptional hardness, corrosion resistance, and great heat dissipation, it offers long service life in industrial environments. It is widely used in automated production lines, robotic assembly arms, conveyor sorting systems, and industrial automation, ideal for 24/7 continuous operation with manual override ready, perfect for low-voltage safety control applications.
Key Features
- Aluminum Alloy Valve Body: High-hardness aluminum construction delivers exceptional corrosion resistance, heat dissipation, and durability for long service life.

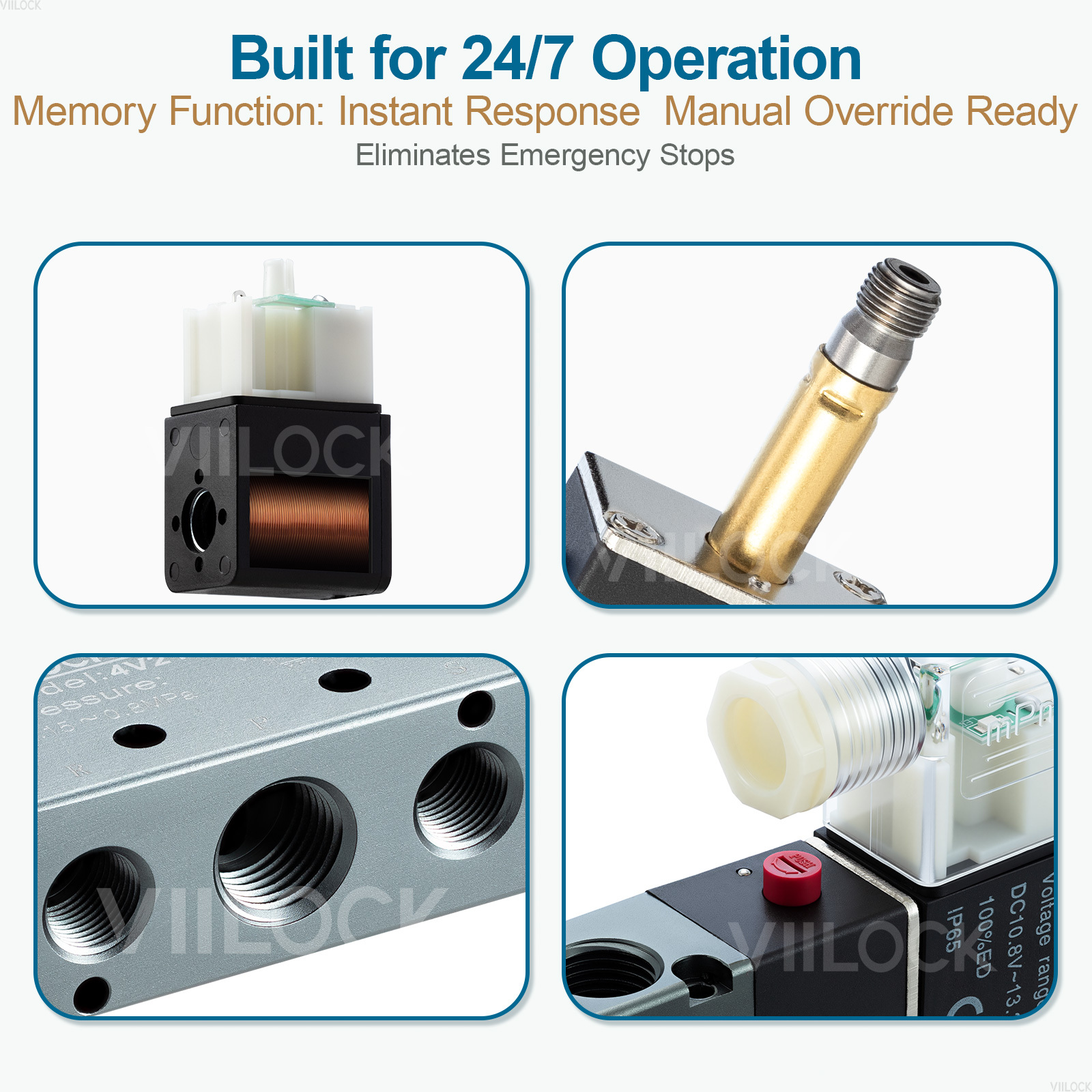

- Double Solenoid Memory Function: Retains valve position on power loss, eliminating emergency stops and ensuring system safety.
- Manual Override Ready: Equipped with manual reset buttons for direct manual control, convenient for emergency operation and debugging.
- Universal Port Sizing: 1/4"NPT threads for P (Supply) and A/B (Output), 1/8"NPT for R/S (Exhaust), compatible with standard pneumatic components.
- IP65 Protection & 100%ED Operation: IP65 dust and water resistance for harsh industrial environments, 100% duty cycle for 24/7 continuous operation.
- Instant Response: Fast switching action for precise control of cylinder movement, perfect for high-speed automated production lines.
Technical Parameters
- Model: 4V220-08
- Product Type: 5 Way 2 Position Pneumatic Solenoid Valve (Double Solenoid)
- Voltage: Available in DC12V (voltage range: DC10.8V~13.2V, power: 5W) and AC110V (voltage range: AC99V~121V, power: 4.5W/VA).
- Working Pressure Range: 0~0.8MPa (≈22-116PSI)
- Port Size: Air Inlet (P)=1/4"NPT, Air Outlet(A B)=1/4"NPT, Air Exhaust(R S)=1/8"NPT
- Material: Aluminum Alloy (High Hardness, Corrosion Resistant, Great Heat Dissipation)
- Protection Grade: IP65
- Duty Cycle: 100%ED (Continuous Operation)

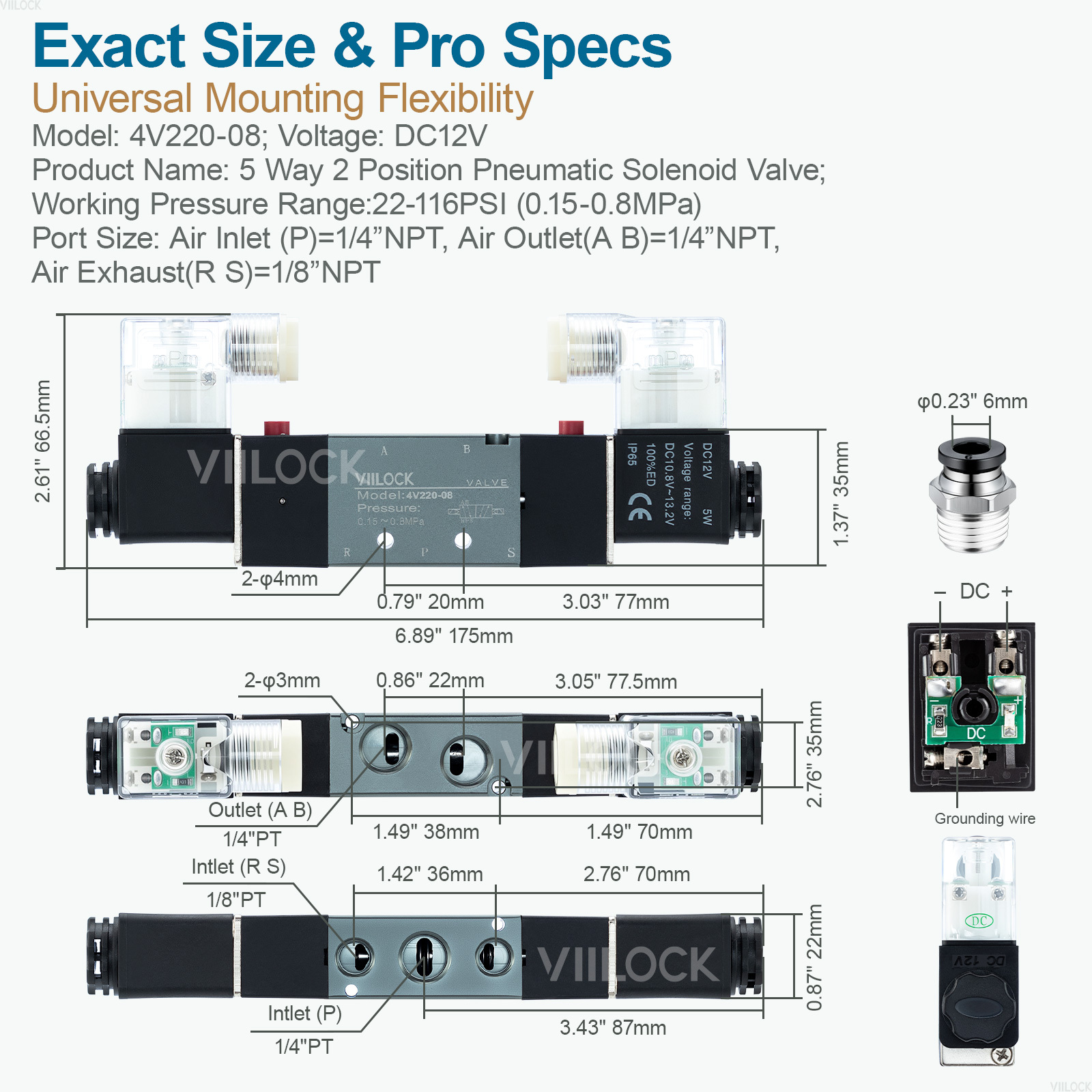

- Dimensions: Total Length 175mm (6.89"), Total Height 66.5mm (2.61"), Valve Body Width 20mm (0.79")

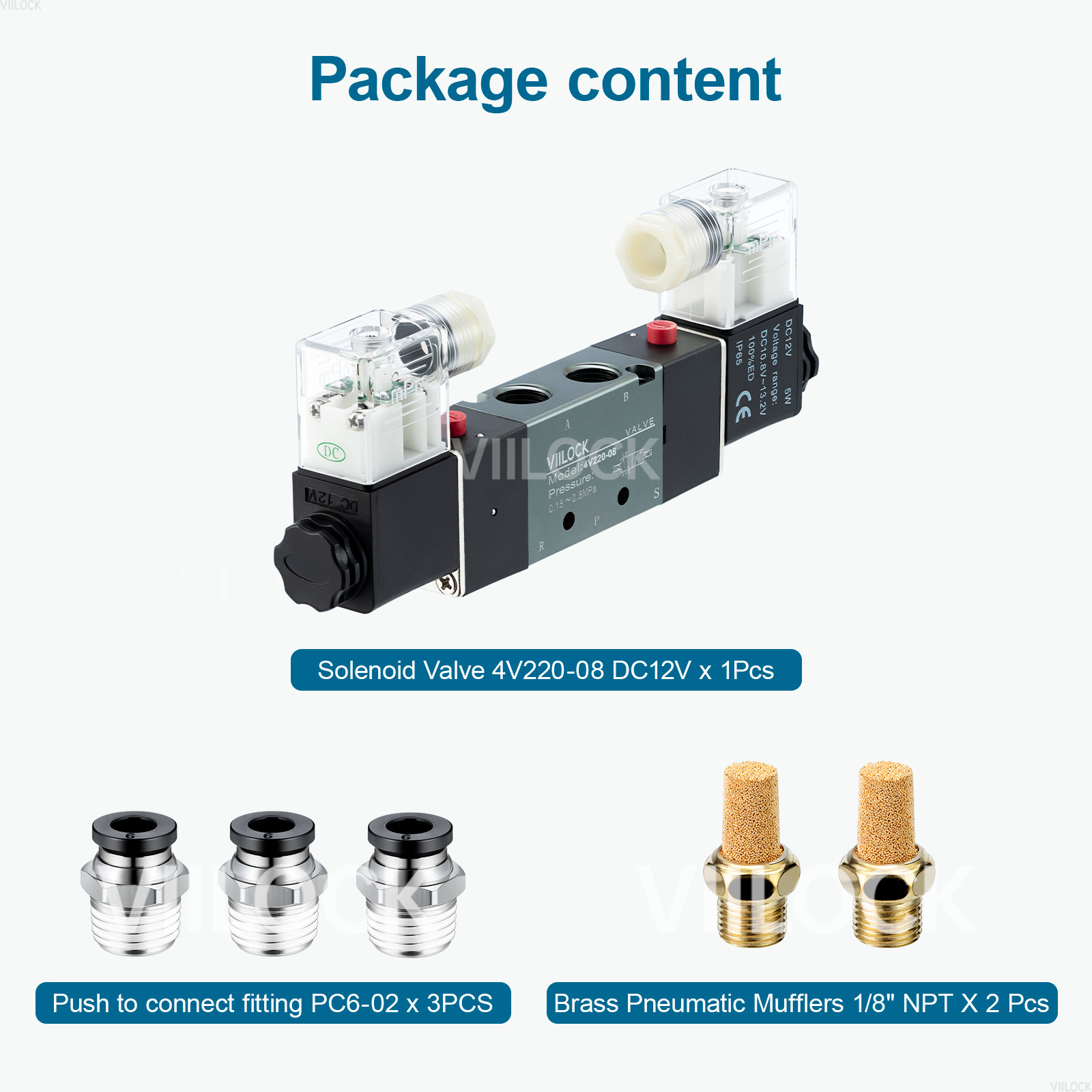

- Package Content: 1 x 4V220-08 DC12V Solenoid Valve, 3 x PC6-02 Push-to-Connect Fittings, 2 x 1/8"NPT Brass Pneumatic Mufflers
Applications

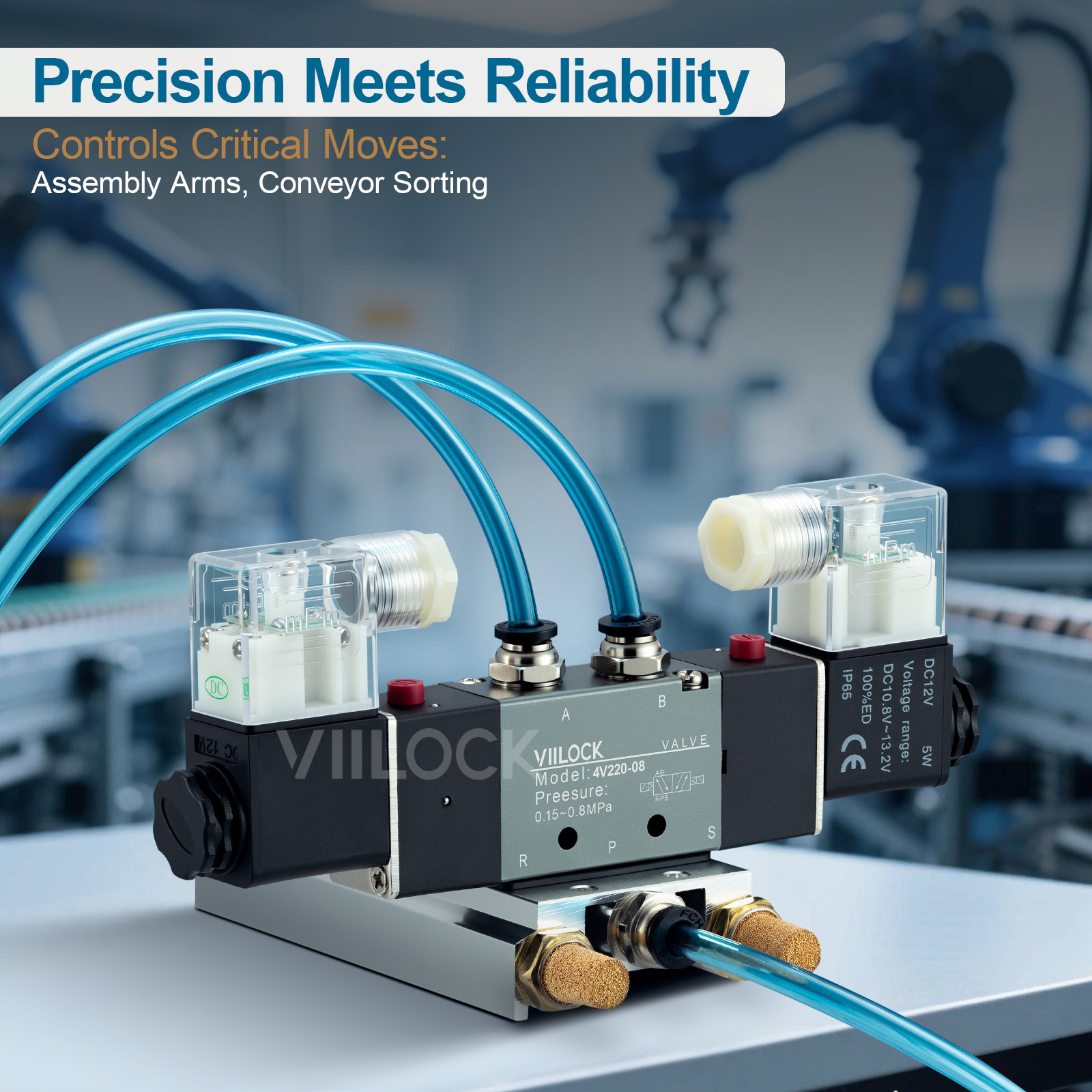

Widely used in automated assembly lines, robotic arms, conveyor sorting systems, machine tool fixtures, pneumatic control systems, and industrial automation equipment. Ideal for pneumatic systems requiring reliable directional control, 24/7 operation, and low-voltage safety control.
