Product Description

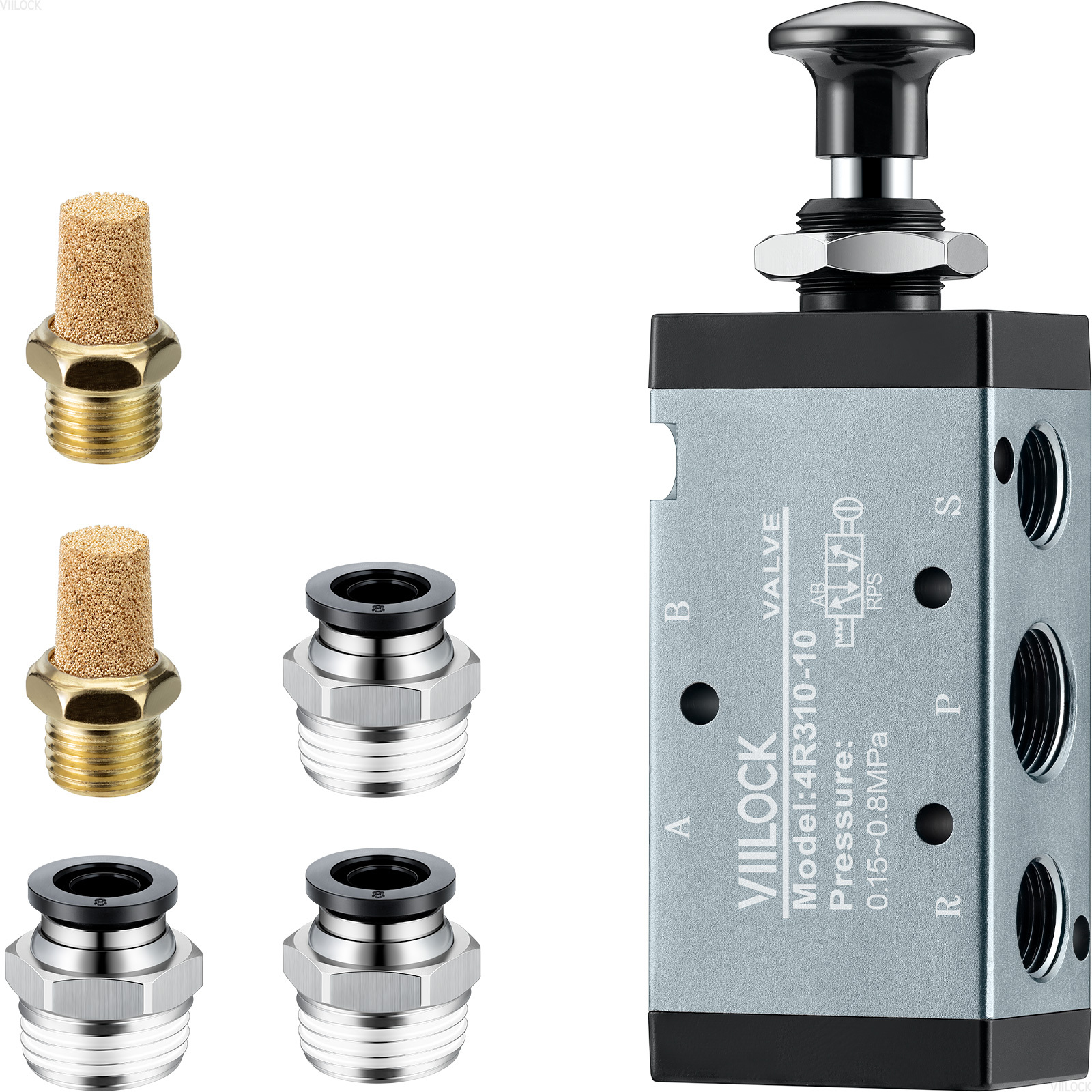

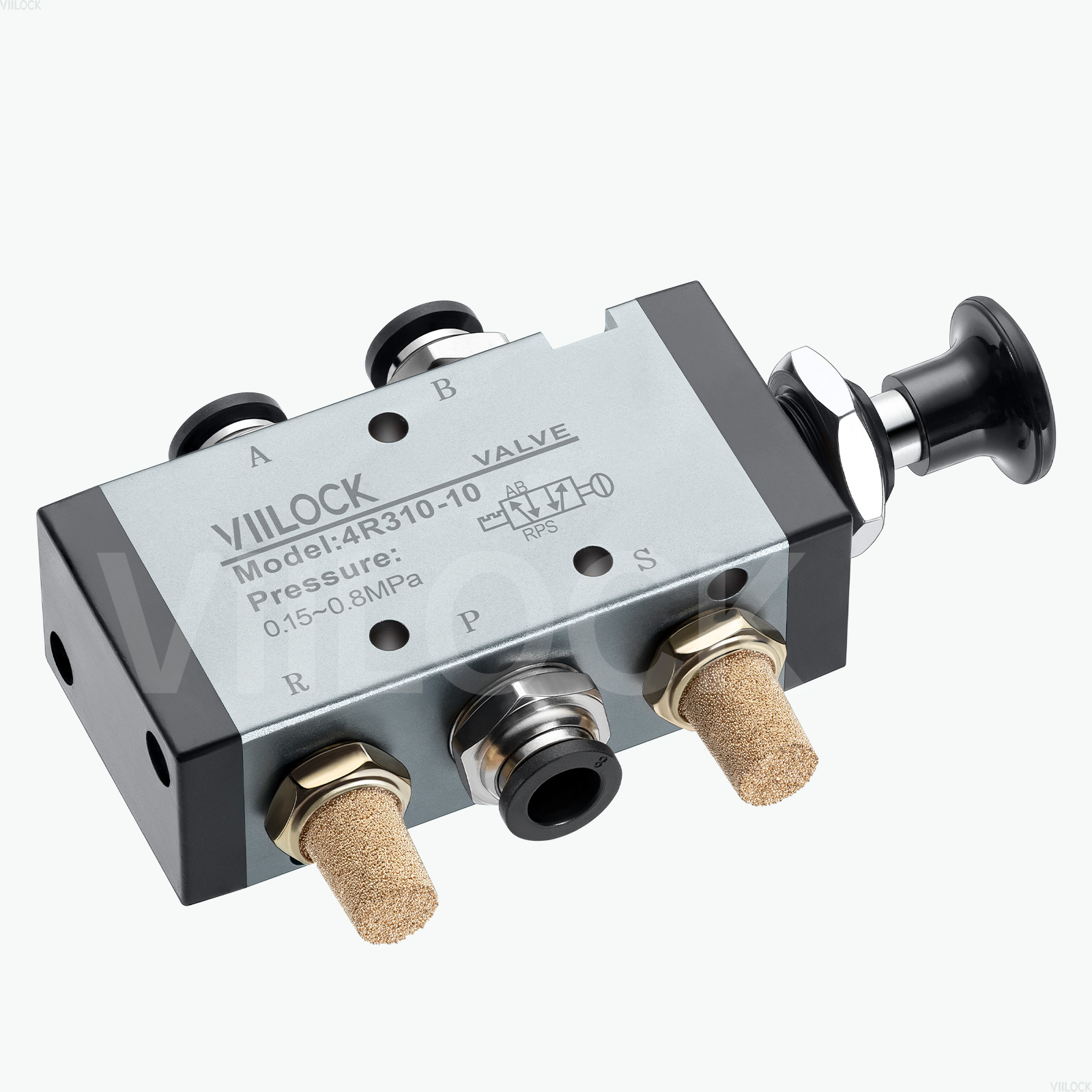

This 4R310-10 2-position 5-way push-pull pneumatic valve is constructed from high-hardness aluminum alloy with a manual push-pull operation structure, realizing bidirectional air path direction control by manual pulling/releasing. With 0.15~0.8MPa working pressure range, 3/8"PT ports for inlet (P) and outlets (A/B), 1/4"PT ports for exhaust (R/S), it features exceptional hardness, corrosion resistance and heat dissipation for stable long-term operation, widely used in pneumatic systems, automation equipment, machinery and other manual control scenarios.
Key Features

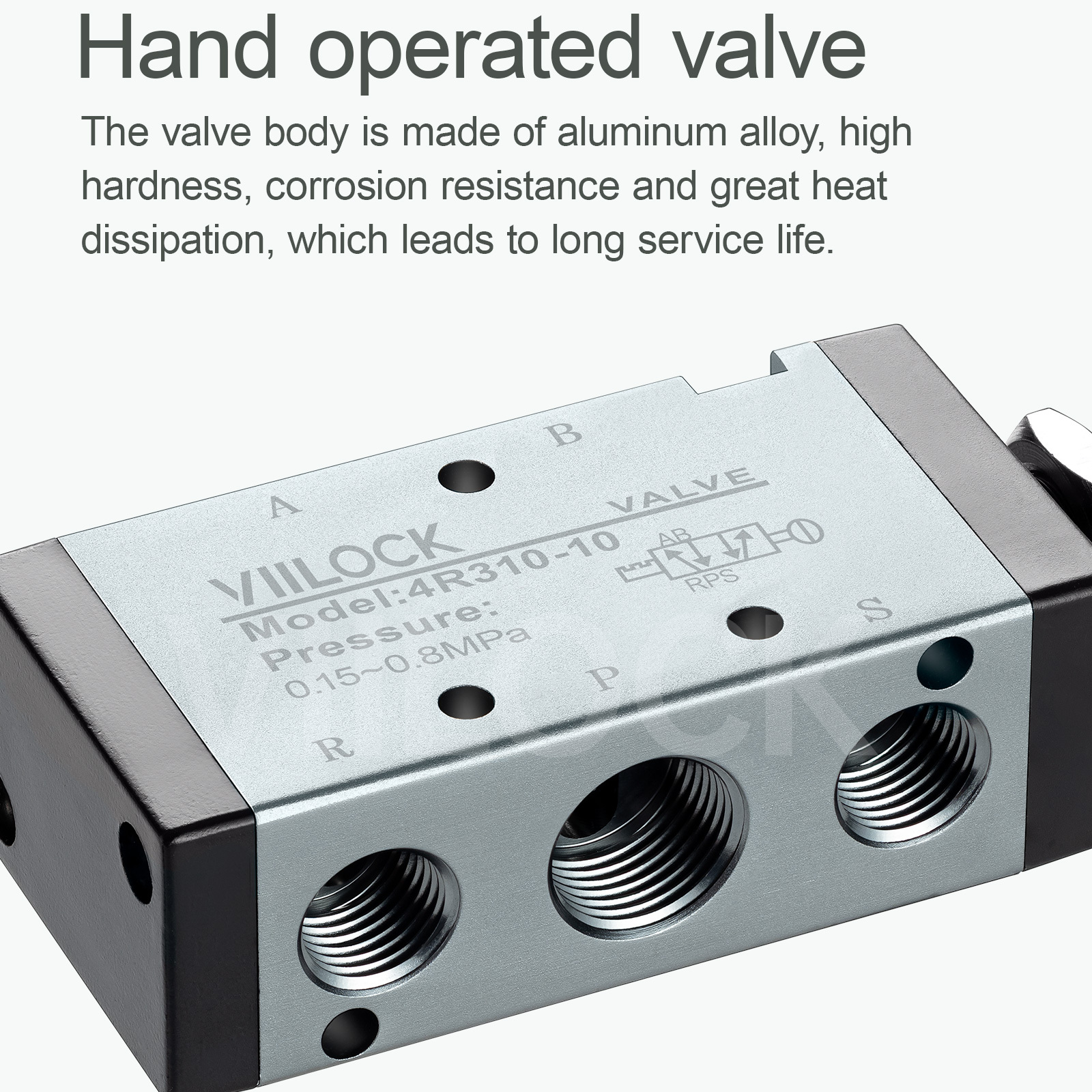

- Aluminum Alloy Body: High hardness, corrosion resistance, excellent heat dissipation for long service life.
- 2-Position 5-Way Push-Pull Structure: Manual operation, automatic spring reset, precise air path switching, effortless control.
- High-Flow Port Design: 3/8"PT inlet/outlet, 1/4"PT exhaust, compatible with high-flow pneumatic lines.
- High Sealing Performance: Precision spool seal with zero leakage for stable long-term use.
- Multi-Industry Application: Widely used in pneumatic systems, automation equipment, machinery manufacturing, industrial assembly.
- Standard Installation: Compliant with industry standard installation dimensions, compatible with various pneumatic actuators.
Technical Parameters
- Model: 4R310-10
- Type: 2 Position 5 Way Push-Pull Pneumatic Valve (Manual Reset)
- Working Pressure Range: 0.15~0.8MPa
- Material: Aluminum Alloy
- Port Size: Air Inlet (P)=3/8"PT; Air Outlet (A/B)=3/8"PT; Air Exhaust (R/S)=1/4"PT
- Operation: Manual Push-Pull, Spring Reset

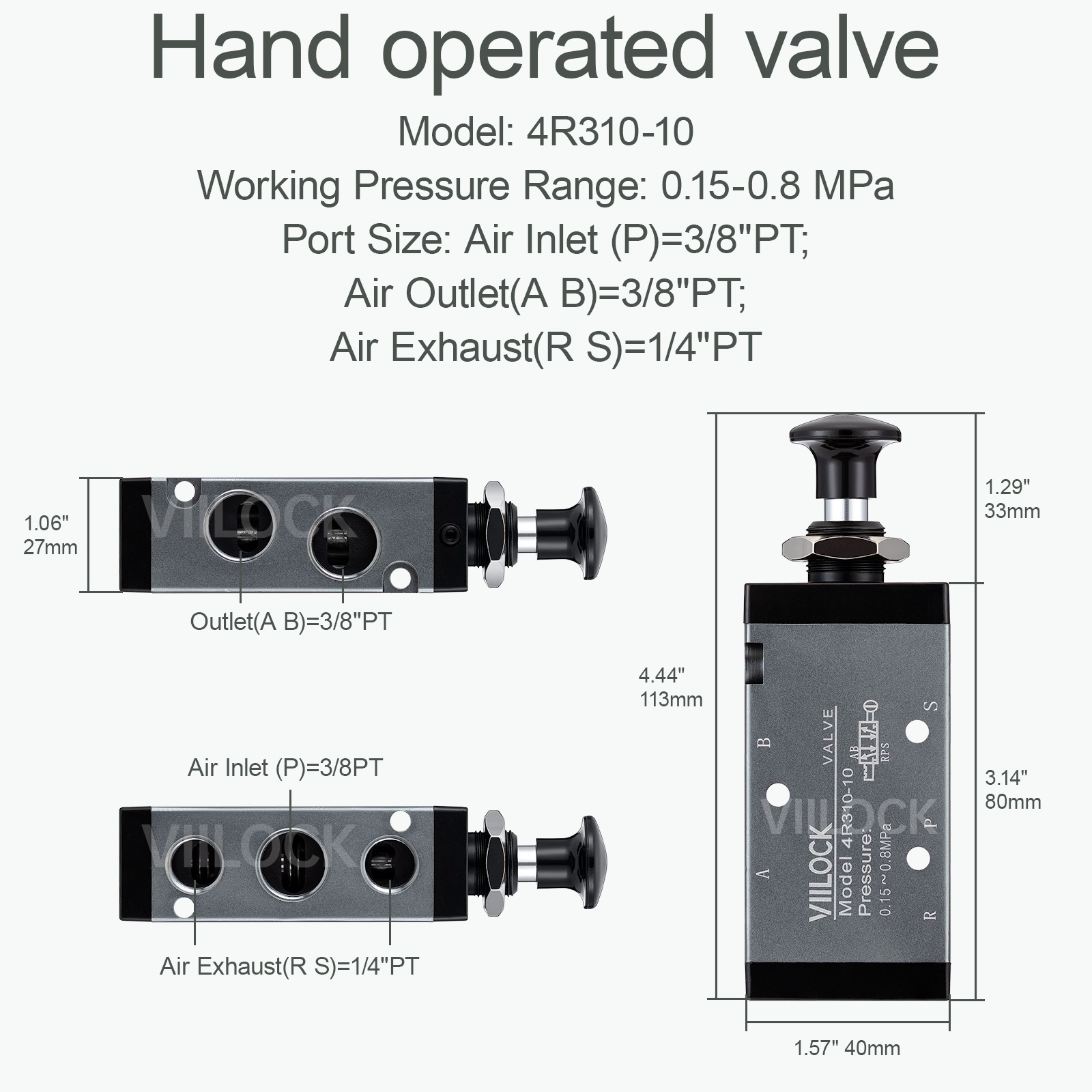

- Dimensions: Total Length 113mm (4.44"), Body Width 40mm (1.57"), Total Height 80mm (3.14")
Applications
Widely used in pneumatic systems, automation production lines, machinery, industrial assembly. Ideal for manual air path direction control and bidirectional drive.
We welcome global pneumatic distributors, machine builders, and automation integrators for long-term cooperation. Bulk orders, custom specifications and OEM/ODM services are available. Contact us for wholesale quotes and sample requests.
